Platform Implementation Plan — ChemLib Drug Discovery Platform¶

Overview¶

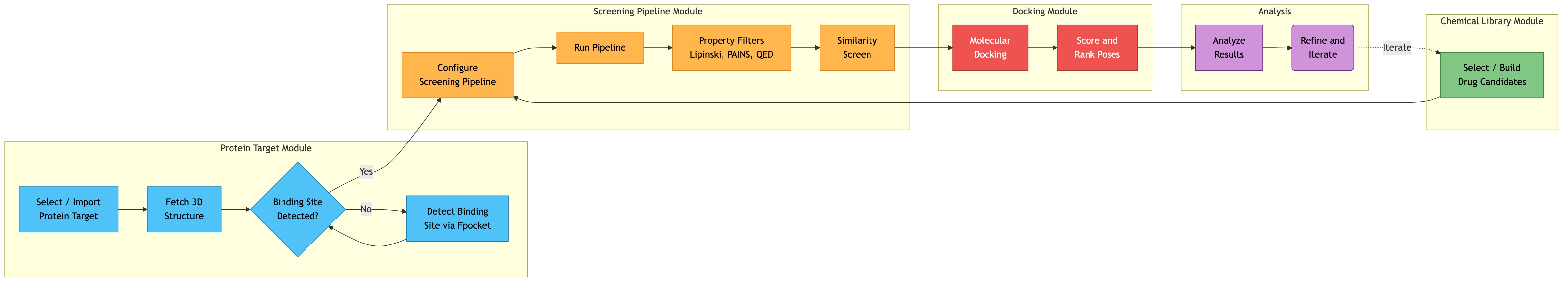

Click diagram to zoom and pan:

This document defines the phased implementation plan for extending ChemLib from a chemical library tool into a full Computer-Aided Drug Discovery (CADD) platform. The existing system (Phases 1-6) provides compound management, fragment decomposition, BRICS assembly, drug-likeness scoring, and 3D visualization. Phases 7-12 add protein target management, structural biology tools, molecular docking, screening pipelines, and a plugin marketplace.

Prerequisites¶

Before starting Phase 7, the following must be complete and working:

Phase 1: Database + ORM models + Alembic migrations
Phase 2: Chemistry engine (RDKit utilities)
Phase 3: API layer (FastAPI routes, Pydantic schemas)
Phase 4: Assembly engine (BRICS fragment joining)
Phase 5: Scoring and filtering (Lipinski, PAINS, QED, SA Score)
Phase 6: 3D visualization (3Dmol.js, conformer generation)

All existing tests pass. The application runs with uvicorn chemlib.main:app --reload.

Click diagram to zoom and pan:

Dependency Graph¶

Phase 1-6 (existing ChemLib) ─────────────────────────────────────────────┐
       │                                                                    │
       ├──────────────┬─────────────────┐                                  │
       ▼              ▼                 │                                  │
   Phase 7        Phase 8              │                                  │
   Protein        Structural           │                                  │
   Targets        Biology              │                                  │
       │              │                 │                                  │
       ▼              │                 │                                  │
   Phase 9 ◀──────────┘                │                                  │
   Binding Site                        │                                  │
   Detection                           │                                  │
       │                                │                                  │
       ▼                                │                                  │
   Phase 10                             │                                  │
   Docking                              │                                  │
   Engine                               │                                  │
       │                                │                                  │
       ▼                                ▼                                  │
   Phase 11 ◀───────────────────────────┘                                  │
   Screening                                                               │
   Pipeline                                                                │
       │                                                                    │
       ▼                                                                    │
   Phase 12                                                                │
   Plugin                                                                  │
   Marketplace                                                             │

Parallelizable: Phases 7 and 8 can be built simultaneously.

Phase 7: Protein Target Library¶

Goal: Enable users to import, browse, and manage protein targets and their 3D structures from UniProt, RCSB PDB, and AlphaFold DB.

Design Document: docs/PROTEIN_TARGET_LIBRARY.md

New Dependencies¶

biopython>=1.83
tmtools>=0.1.0
httpx (already present)

Tasks¶

7.1 Database Models¶

File	Contents
`chemlib/models/protein.py`	`ProteinTarget`, `ProteinStructure`, `BindingSite` ORM models
`chemlib/models/__init__.py`	Register new models with Base

Create all three models with full column definitions per PROTEIN_TARGET_LIBRARY.md
Add relationships: ProteinTarget → ProteinStructure (1:N), ProteinStructure → BindingSite (1:N)
Alembic migration: alembic revision --autogenerate -m "add protein target tables"
Test: model creation, relationships, cascade delete

7.2 External API Clients¶

File	Contents
`chemlib/bioinformatics/__init__.py`	Package init
`chemlib/bioinformatics/external_apis.py`	`UniProtClient`, `RCSBClient`, `AlphaFoldClient`

Implement HTTP clients using httpx.AsyncClient
UniProt: fetch entry, search, parse entry
RCSB: fetch entry info, download PDB, download mmCIF, get UniProt mapping
AlphaFold: fetch prediction, download PDB
Test with mocked responses (record real responses as fixtures)

7.3 PDB Parser Utilities¶

File	Contents
`chemlib/bioinformatics/pdb_parser.py`	PDB/mmCIF parsing functions

parse_pdb_string(), parse_mmcif_string() using Biopython
extract_chains(), extract_ligands(), extract_sequence_from_chain()
get_resolution(), get_method()
Test with sample PDB files

7.4 Pydantic Schemas¶

File	Contents
`chemlib/schemas/protein.py`	All Pydantic models for protein targets, structures, binding sites

ProteinTargetCreate, ProteinTargetResponse, ProteinTargetFilter, ProteinTargetListResponse
ProteinStructureCreate, ProteinStructureResponse, ProteinStructureDetailResponse
BindingSiteCreate, BindingSiteFromLigand, BindingSiteResponse

7.5 DB Service Layer¶

File	Contents
`chemlib/db/service.py`	Add `ProteinTargetDBService`, `ProteinStructureDBService`, `BindingSiteDBService`

CRUD operations for all three models
Specialized queries: list structures for target, list binding sites for structure

7.6 Business Services¶

File	Contents
`chemlib/services/protein_target_service.py`	`ProteinTargetService`
`chemlib/services/protein_structure_service.py`	`ProteinStructureService`

import_from_uniprot(accession): call UniProtClient, parse, store
import_from_pdb(pdb_id): call RCSBClient, resolve UniProt, store
search_uniprot(query): proxy search to UniProt API
fetch_from_rcsb(pdb_id, target_id): download PDB, parse metadata, store
fetch_from_alphafold(uniprot_id, target_id): download AlphaFold PDB, store
upload_structure(target_id, file_data): validate, parse, store

7.7 API Routes¶

File	Contents
`chemlib/api/targets.py`	`/api/targets/` CRUD + fetch endpoints
`chemlib/api/structures.py`	`/api/structures/` CRUD + chain/sequence endpoints

Register routes in chemlib/main.py
All endpoints per PROTEIN_TARGET_LIBRARY.md API section

7.8 UI¶

File	Contents
`chemlib/templates/protein_browser.html`	Protein target list page
`chemlib/templates/protein_detail.html`	Protein detail with 3D viewer
`chemlib/static/js/protein_viewer.js`	3Dmol.js protein viewer component

Protein browser: table with search, filter, pagination
Protein detail: metadata display, structure list, 3D viewer (cartoon mode)
Viewer: load PDB data, cartoon/surface/stick styles, chain selection

7.9 Tests¶

Directory	Contents
`tests/test_protein/test_models.py`	ORM model tests
`tests/test_protein/test_services.py`	Service tests with mocked APIs
`tests/test_protein/test_api.py`	API endpoint tests
`tests/test_bioinformatics/test_pdb_parser.py`	PDB parsing tests
`tests/test_bioinformatics/test_external_apis.py`	API client tests (mocked)

Deliverable¶

Protein target browser with import from UniProt
3D structure viewer (cartoon mode) for PDB structures fetched from RCSB/AlphaFold
Full CRUD API for targets and structures

Phase 8: Structural Biology Tools¶

Goal: Add sequence alignment (pairwise + MSA), structural alignment (TM-align), and visualization of alignment results.

Design Document: docs/PROTEIN_TARGET_LIBRARY.md (alignment sections)

Can be built in parallel with Phase 7.

New Dependencies¶

# Python packages
tmtools>=0.1.0     (may already be added in Phase 7)
pymsaviz>=0.4.0

# System binaries (must be on PATH)
mafft              # brew install mafft / apt install mafft

Tasks¶

8.1 Database Models¶

File	Contents
`chemlib/models/alignment.py`	`SequenceAlignment`, `StructuralAlignment` ORM models

Alembic migration: add alignment tables
Note: StructuralAlignment has FK to ProteinStructure — requires Phase 7 tables to exist

8.2 Sequence Alignment Utilities¶

File	Contents
`chemlib/bioinformatics/sequence_tools.py`	`pairwise_align_biopython()`, `multiple_align_mafft()`, `multiple_align_clustalo()`

Biopython PairwiseAligner with BLOSUM62
MAFFT subprocess wrapper (write FASTA temp file, parse output)
Identity percentage computation
Test with known sequence pairs

8.3 Structural Alignment Utilities¶

File	Contents
`chemlib/bioinformatics/structural_tools.py`	`tm_align()`, `superimpose_biopython()`, `apply_transformation()`

tmtools for TM-align: extract CA coords, run alignment, get rotation/translation
Biopython Superimposer as fallback
Apply transformation to generate superposed PDB
Test with known structure pairs

8.4 Pydantic Schemas¶

File	Contents
`chemlib/schemas/alignment.py`	`SequenceAlignmentRequest`, `SequenceInput`, `SequenceAlignmentResponse`, `StructuralAlignmentRequest`, `StructuralAlignmentResponse`

8.5 Business Services¶

File	Contents
`chemlib/services/alignment_service.py`	`AlignmentService`

pairwise_sequence_align(): validate inputs, run alignment, store result
multiple_sequence_align(): validate inputs, run MAFFT, store result
structural_align(): load structures, run tmtools/Superimposer, store result
generate_alignment_image(): use pyMSAviz to render PNG

8.6 API Routes¶

File	Contents
`chemlib/api/alignments.py`	`/api/alignments/` endpoints

POST /api/alignments/sequence — run sequence alignment
GET /api/alignments/sequence/{id} — get result
GET /api/alignments/sequence/{id}/image — get PNG image
POST /api/alignments/structure — run structural alignment
GET /api/alignments/structure/{id} — get result
Register in chemlib/main.py

8.7 UI¶

File	Contents
`chemlib/templates/alignment_viewer.html`	Alignment results page
`chemlib/static/js/msa_viewer.js`	BioJS MSA Viewer integration

Sequence alignment viewer: BioJS MSA Viewer with color schemes (Clustal, Zappo)
Structural alignment viewer: 3Dmol.js overlay of two structures with different colors
Display metrics: identity %, score, TM-score, RMSD
Download buttons: FASTA, PNG image

8.8 Tests¶

Directory	Contents
`tests/test_alignment/test_sequence.py`	Sequence alignment tests
`tests/test_alignment/test_structural.py`	Structural alignment tests (requires tmtools)
`tests/test_alignment/test_api.py`	API endpoint tests

Deliverable¶

Pairwise sequence alignment with Biopython
Multiple sequence alignment with MAFFT
Structural alignment with TM-align (tmtools)
Interactive alignment viewers in the browser

Phase 9: Binding Site Detection & Protein Preparation¶

Goal: Detect druggable binding pockets using Fpocket, define binding sites from co-crystallized ligands or manually, and prepare proteins for docking.

Depends on: Phase 7 (ProteinStructure, BindingSite models must exist)

New Dependencies¶

# Python packages
pdbfixer>=1.9

# System binaries
fpocket             # brew install fpocket / compile from source

Tasks¶

9.1 Fpocket Integration¶

File	Contents
`chemlib/bioinformatics/pocket_detection.py`	`run_fpocket()`, `parse_fpocket_info()`, `parse_pocket_pdb()`

Write PDB to temp file, run fpocket -f file.pdb as subprocess
Parse output: info.txt (scores), pocket PDB files (coordinates)
Extract center, box size, residues, druggability score, volume per pocket
Clean up temp files
Test with a small known protein (mark as integration test, skip if fpocket not installed)

9.2 Protein Preparation¶

File	Contents
`chemlib/bioinformatics/protein_prep.py`	`fix_protein()`, `remove_water()`, `add_hydrogens()`

PDBFixer integration for fixing missing atoms/residues
Remove heterogens and water
Add hydrogens at specified pH
Test with broken PDB files

9.3 Binding Site Service¶

File	Contents
`chemlib/services/binding_site_service.py`	`BindingSiteService`

detect_pockets(structure_id): run Fpocket, parse, store BindingSite records
define_from_ligand(structure_id, ligand_id, padding): find ligand atoms, compute center/box, find nearby residues
define_manual(structure_id, data): store user-defined binding site
CRUD operations for binding sites

9.4 Protein Preparation Service¶

File	Contents
`chemlib/services/protein_prep_service.py`	`ProteinPrepService`

prepare_for_docking(structure_id): fix protein, add hydrogens, return fixed PDB

9.5 API Extensions¶

Add to existing chemlib/api/structures.py: - POST /api/structures/{id}/detect-pockets — run Fpocket - POST /api/structures/{id}/binding-sites — define manual - POST /api/structures/{id}/binding-sites/from-ligand — define from ligand - GET /api/structures/{id}/binding-sites — list binding sites - POST /api/structures/{id}/prepare — prepare for docking

9.6 UI Extensions¶

Update chemlib/templates/protein_detail.html: - Add binding site list section - Add "Detect Pockets" button - 3Dmol.js: show binding site box overlay, residue highlighting - Binding site detail modal with center/box/residues

9.7 Tests¶

Directory	Contents
`tests/test_protein/test_binding_site.py`	Binding site service tests
`tests/test_bioinformatics/test_pocket_detection.py`	Fpocket tests (integration, skip if binary missing)
`tests/test_bioinformatics/test_protein_prep.py`	PDBFixer tests

Deliverable¶

Fpocket pocket detection with druggability scores
Binding site definition from ligand or manual
Protein preparation (fix, add H) for docking
Binding site visualization in 3D viewer

Phase 10: Docking Engine¶

Goal: Integrate AutoDock Vina for molecular docking, meeko for ligand preparation, PLIP for interaction analysis, and visualization of docked poses.

Design Document: docs/DOCKING_INTEGRATION.md

Depends on: Phase 9 (binding sites, protein preparation)

New Dependencies¶

# Python packages
vina>=1.2.5
meeko>=0.5.0
openbabel-wheel>=3.1.0
plip>=2.3.0

Tasks¶

10.1 Database Models¶

File	Contents
`chemlib/models/docking.py`	`DockingRun`, `DockingResult` ORM models

Alembic migration: add docking tables
FKs to: ProteinStructure, BindingSite, Compound, AssembledMolecule

10.2 Docking Utilities¶

File	Contents
`chemlib/docking/__init__.py`	Package init
`chemlib/docking/ligand_prep.py`	`smiles_to_pdbqt()`, `mol_to_pdbqt()`, `pdbqt_to_pdb()`, `split_pdbqt_poses()`
`chemlib/docking/receptor_prep.py`	`pdb_to_pdbqt()`, `prepare_receptor_full()`
`chemlib/docking/vina_runner.py`	`dock_ligand()`, `score_ligand()`
`chemlib/docking/interaction_analysis.py`	`analyze_complex()`

meeko for ligand PDBQT conversion
Open Babel subprocess for receptor PDBQT conversion
Vina Python API for docking
PLIP for interaction profiling
Test each utility independently

10.3 Pydantic Schemas¶

File	Contents
`chemlib/schemas/docking.py`	`DockingRunCreate`, `DockingRunResponse`, `DockingResultResponse`, `DockingResultDetailResponse`, `InteractionAnalysisResponse`

10.4 Business Services¶

File	Contents
`chemlib/services/docking_service.py`	`DockingService`
`chemlib/services/interaction_service.py`	`InteractionService`

prepare_receptor(): PDBFixer + PDBQT conversion, cache
prepare_ligand(): SMILES → 3D → meeko → PDBQT
dock(): batch docking — prepare receptor once, dock each ligand
dock_single(): low-level single ligand docking
analyze_interactions(): PLIP on protein-ligand complex
Background execution for batch docking

10.5 API Routes¶

File	Contents
`chemlib/api/docking.py`	`/api/docking/` endpoints

Full endpoint set per DOCKING_INTEGRATION.md
Background task for batch docking runs
Register in chemlib/main.py

10.6 UI¶

File	Contents
`chemlib/templates/docking_viewer.html`	Docking results page
`chemlib/static/js/protein_viewer.js`	Extend with docking pose display

3D viewer: protein (cartoon, gray) + ligand (sticks, green) + binding site (surface)
Interaction display: H-bond dashes, contact labels
Results table: ranked by score, interaction counts
Pose selector dropdown (switch between top N poses)
Interaction diagram (2D summary)

10.7 Tests¶

Directory	Contents
`tests/test_docking/test_ligand_prep.py`	meeko conversion tests
`tests/test_docking/test_receptor_prep.py`	PDBQT conversion tests
`tests/test_docking/test_vina.py`	Docking tests (integration, requires vina)
`tests/test_docking/test_plip.py`	Interaction analysis tests
`tests/test_docking/test_service.py`	DockingService tests
`tests/test_docking/test_api.py`	API endpoint tests

Deliverable¶

AutoDock Vina docking via API
Ligand + receptor preparation pipeline
PLIP interaction analysis
3D docking pose viewer with interaction overlay
Batch docking with progress tracking

Phase 11: Screening Pipeline Engine¶

Goal: Build the configurable, DAG-based screening pipeline engine with a visual editor, background execution, and results visualization.

Design Document: docs/SCREENING_PIPELINE.md

Depends on: Phase 10 (docking as a filter node) + existing ChemLib (compounds, scoring)

New Dependencies¶

None — uses existing tools.

Tasks¶

11.1 Plugin Protocol and Built-in Filters¶

File	Contents
`chemlib/plugins/__init__.py`	Package init
`chemlib/plugins/protocols.py`	`FilterPlugin`, `FilterResult`, `PipelineContext` protocols/dataclasses
`chemlib/plugins/builtin/__init__.py`	Package init
`chemlib/plugins/builtin/property_filters.py`	`LipinskiFilter`, `VeberFilter`, `GhoseFilter`, `EganFilter`, `MueggeFilter`, `PAINSFilter`, `BrenkFilter`, `QEDThresholdFilter`, `SAScoreFilter`, `MWRangeFilter`, `LogPRangeFilter`, `TPSARangeFilter`, `HBDMaxFilter`, `HBAMaxFilter`, `RotBondsMaxFilter`
`chemlib/plugins/builtin/similarity_filters.py`	`TanimotoSimilarityFilter`, `SubstructureMatchFilter`, `MACCSSimilarityFilter`
`chemlib/plugins/builtin/adme_filters.py`	`ESOLSolubilityFilter`, `BBBRuleFilter`, `hERGRuleFilter`, `RuleOfThreeFilter`
`chemlib/plugins/builtin/docking_filter.py`	`VinaDockingFilter`
`chemlib/plugins/builtin/external_filters.py`	`PLIPInteractionFilter`, `ADMETlabFilter` (stubbed)

Each filter implements the full FilterPlugin protocol
Each has proper config_schema (JSON Schema)
Test each filter independently with known molecules

11.2 Database Models¶

File	Contents
`chemlib/models/pipeline.py`	`Pipeline`, `PipelineRun`, `PipelineRunResult`, `FilterPluginRegistry` ORM models

Alembic migration: add pipeline and plugin tables
FKs to: ProteinTarget, Compound, AssembledMolecule

11.3 Pydantic Schemas¶

File	Contents
`chemlib/schemas/pipeline.py`	`PipelineDefinition`, `PipelineNode`, `PipelineEdge`, `PipelineCreate`, `PipelineResponse`, `PipelineRunCreate`, `PipelineRunResponse`, `PipelineRunResultResponse`, `PipelineRunResultFilter`, `PluginRegistryResponse`

11.4 Pipeline Executor¶

File	Contents
`chemlib/services/pipeline_executor.py`	`PipelineExecutor` class

DAG validation (no cycles)
Topological sort (Kahn's algorithm)
Plugin instantiation from registry
Batch processing with configurable batch size
Early termination (skip downstream for failed compounds)
Progress tracking (update PipelineRun status)
Results storage (PipelineRunResult per compound per node)
Error handling (catch plugin errors, mark compound as failed, continue)
Test with a simple 3-node pipeline and mock filters

11.5 Business Services¶

File	Contents
`chemlib/services/pipeline_service.py`	`PipelineService`

CRUD for pipeline definitions
DAG validation on create/update
Start run: resolve compound list, create PipelineRun, spawn background executor
Get run status, results, funnel summary
Cancel run

11.6 Plugin Seeding Script¶

File	Contents
`scripts/seed_plugins.py`	Register all built-in plugins in the database

Called once during setup or on app startup
Upserts to avoid duplicates

11.7 API Routes¶

File	Contents
`chemlib/api/pipelines.py`	`/api/pipelines/` endpoints
`chemlib/api/plugins.py`	`/api/plugins/` endpoints

Full endpoint set per SCREENING_PIPELINE.md
Background task for pipeline execution
Register in chemlib/main.py

11.8 UI¶

File	Contents
`chemlib/templates/pipeline_builder.html`	Visual DAG editor page
`chemlib/templates/pipeline_results.html`	Run results and funnel visualization
`chemlib/static/js/pipeline_editor.js`	DAG editor (drag-and-drop nodes, connect edges)
`chemlib/static/js/plugin_config_form.js`	JSON Schema → HTML form renderer

Pipeline builder: sidebar with filter nodes by category, canvas for DAG, config panel
Node drag-and-drop, edge drawing, node configuration
Serialize/deserialize to PipelineDefinition JSON
Results page: funnel bar chart, filterable results table
Progress polling during pipeline execution

11.9 Tests¶

Directory	Contents
`tests/test_plugins/test_property_filters.py`	All property filter tests
`tests/test_plugins/test_similarity_filters.py`	Similarity filter tests
`tests/test_plugins/test_adme_filters.py`	ADME filter tests
`tests/test_pipeline/test_executor.py`	Pipeline executor tests
`tests/test_pipeline/test_service.py`	Pipeline service tests
`tests/test_pipeline/test_api.py`	API endpoint tests

Deliverable¶

25+ built-in filter plugins
Visual pipeline builder (DAG editor)
Background pipeline execution with progress tracking
Funnel visualization of results

Phase 12: Plugin Marketplace¶

Goal: Formalize the plugin architecture, add entry point discovery, build the marketplace UI, and auto-generate config forms.

Design Document: docs/PLUGIN_MARKETPLACE.md

Depends on: Phase 11 (plugin protocols, registry, pipeline integration)

New Dependencies¶

None — uses existing infrastructure.

Tasks¶

12.1 Plugin Registry Service¶

File	Contents
`chemlib/plugins/registry.py`	`PluginRegistryService`

discover_and_register_all(): scan built-in + entry points
_register_builtin_plugins(): import all classes from chemlib.plugins.builtin.*
_register_entrypoint_plugins(): scan chemlib.plugins.filter, chemlib.plugins.docking, chemlib.plugins.adme entry point groups
get_plugin_instance(): instantiate and cache plugins
list_plugins(), get_plugin_info(), set_active()
Integrate with app startup in chemlib/main.py (call discover_and_register_all on startup)

12.2 Additional Protocol Classes¶

File	Contents
`chemlib/plugins/protocols.py`	Add `DockingPlugin`, `ADMEPlugin`, `VisualizationPlugin`, `ExternalServicePlugin`

Full Protocol definitions per PLUGIN_MARKETPLACE.md
DockingPluginResult, ADMEPrediction dataclasses

12.3 API Extensions¶

Extend chemlib/api/plugins.py: - PUT /api/plugins/{name}/active — enable/disable - POST /api/plugins/refresh — re-scan and register

12.4 Marketplace UI¶

File	Contents
`chemlib/templates/plugin_marketplace.html`	Plugin browser page
`chemlib/static/js/plugin_config_form.js`	Enhance JSON Schema form renderer

Browse plugins by category (card layout)
Each card: name, description, category, estimated time, active status
"Configure" button: opens modal with auto-generated form
"Use in Pipeline" button: redirects to pipeline builder with plugin pre-selected
Category filter, search bar
Admin: enable/disable toggle

12.5 App Startup Integration¶

Update chemlib/main.py:

@app.on_event("startup")
async def register_plugins():
    async with get_db_session() as db:
        registry = PluginRegistryService()
        await registry.discover_and_register_all(db)

12.6 Entry Point Documentation¶

Create example for third-party plugin developers: - How to create a plugin package - How to implement FilterPlugin protocol - How to define entry points in pyproject.toml - How to test plugin compliance

12.7 Tests¶

Directory	Contents
`tests/test_plugins/test_registry.py`	Plugin discovery and registration tests
`tests/test_plugins/test_protocol_compliance.py`	Verify all built-in plugins satisfy Protocol
`tests/test_plugins/test_api.py`	Plugin API endpoint tests

Deliverable¶

Plugin registry with automatic discovery
Marketplace UI for browsing and configuring plugins
Entry point-based plugin installation support
All built-in plugins registered and available

Phase Summary Table¶

Phase	Name	New Python Deps	System Binaries	Key Deliverable	Est. Effort
7	Protein Target Library	biopython, tmtools	—	Protein browser + 3D viewer	Medium
8	Structural Biology	pymsaviz	mafft	Alignment tools + visualization	Medium
9	Binding Site Detection	pdbfixer	fpocket	Pocket detection + protein prep	Small
10	Docking Engine	vina, meeko, openbabel-wheel, plip	—	Molecular docking pipeline	Large
11	Screening Pipeline	—	—	Visual pipeline builder + executor	Large
12	Plugin Marketplace	—	—	Extensible plugin architecture	Medium

Configuration Updates¶

`chemlib/config.py` Additions¶

class Settings(BaseSettings):
    # ... existing settings ...

    # Phase 7: External APIs
    UNIPROT_API_BASE: str = "https://rest.uniprot.org"
    RCSB_API_BASE: str = "https://data.rcsb.org"
    RCSB_FILES_BASE: str = "https://files.rcsb.org"
    ALPHAFOLD_API_BASE: str = "https://alphafold.ebi.ac.uk/api"
    EXTERNAL_API_TIMEOUT: int = 30  # seconds

    # Phase 8: Alignment tools
    MAFFT_BINARY: str = "mafft"
    CLUSTALO_BINARY: str = "clustalo"
    FOLDSEEK_BINARY: str = "foldseek"

    # Phase 9: Pocket detection
    FPOCKET_BINARY: str = "fpocket"
    DEFAULT_POCKET_MIN_DRUGGABILITY: float = 0.2
    DEFAULT_BINDING_SITE_PADDING: float = 5.0  # Angstroms

    # Phase 10: Docking
    VINA_EXHAUSTIVENESS: int = 32
    VINA_NUM_POSES: int = 10
    VINA_ENERGY_RANGE: float = 3.0
    DOCKING_DEFAULT_PH: float = 7.0

    # Phase 11: Pipeline
    PIPELINE_BATCH_SIZE: int = 100
    PIPELINE_MAX_COMPOUNDS: int = 100_000
    PIPELINE_POLL_INTERVAL: int = 3  # seconds (for UI polling)

`requirements.txt` Additions¶

# Phase 7
biopython>=1.83
tmtools>=0.1.0

# Phase 8
pymsaviz>=0.4.0

# Phase 9
pdbfixer>=1.9

# Phase 10
vina>=1.2.5
meeko>=0.5.0
openbabel-wheel>=3.1.0
plip>=2.3.0

Migration Strategy¶

Each phase creates its own Alembic migration. Migrations are ordered and can be applied incrementally:

# Phase 7
alembic revision --autogenerate -m "add protein target, structure, binding site tables"
alembic upgrade head

# Phase 8
alembic revision --autogenerate -m "add sequence and structural alignment tables"
alembic upgrade head

# Phase 10
alembic revision --autogenerate -m "add docking run and docking result tables"
alembic upgrade head

# Phase 11
alembic revision --autogenerate -m "add pipeline, pipeline run, pipeline result, filter plugin registry tables"
alembic upgrade head

Important: Phase 9 does not need its own migration because BindingSite is created in Phase 7's migration (it belongs to the protein module). Phase 12 does not need new tables — it uses the FilterPluginRegistry from Phase 11.

Router Registration Order¶

Update chemlib/main.py as phases are completed:

# chemlib/main.py

from fastapi import FastAPI
from chemlib.api import compounds, fragments, assembly, visualization, scoring  # Existing
from chemlib.api import targets, structures  # Phase 7
from chemlib.api import alignments           # Phase 8
# Phase 9 endpoints are in structures.py (already registered)
from chemlib.api import docking              # Phase 10
from chemlib.api import pipelines, plugins   # Phase 11-12

app = FastAPI(title="ChemLib Drug Discovery Platform")

# Existing
app.include_router(compounds.router)
app.include_router(fragments.router)
app.include_router(assembly.router)
app.include_router(visualization.router)
app.include_router(scoring.router)

# Phase 7
app.include_router(targets.router)
app.include_router(structures.router)

# Phase 8
app.include_router(alignments.router)

# Phase 10
app.include_router(docking.router)

# Phase 11-12
app.include_router(pipelines.router)
app.include_router(plugins.router)

Quality Checklist (Per Phase)¶

Before marking a phase as complete, verify:

[ ] All ORM models match the design document schemas exactly
[ ] Alembic migration applies cleanly on fresh DB and existing DB
[ ] All service methods have proper error handling (custom exceptions)
[ ] All API endpoints have Pydantic request/response validation
[ ] All endpoints are documented in OpenAPI (auto-generated from FastAPI)
[ ] External API calls handle timeouts, rate limits, and error responses
[ ] Subprocess calls (Fpocket, MAFFT, Open Babel) handle missing binaries gracefully
[ ] Background tasks properly update status on success and failure
[ ] UI pages are functional (load data, display results, handle errors)
[ ] Unit tests pass for all new utility functions
[ ] Integration tests pass for services
[ ] E2E tests pass for API endpoints
[ ] No regressions in existing tests
[ ] CLAUDE.md is updated with new modules and commands

Platform Implementation Plan — ChemLib Drug Discovery Platform¶

Overview¶

Prerequisites¶

Dependency Graph¶

Phase 7: Protein Target Library¶

New Dependencies¶

Tasks¶

7.1 Database Models¶

7.2 External API Clients¶

7.3 PDB Parser Utilities¶

7.4 Pydantic Schemas¶

7.5 DB Service Layer¶

7.6 Business Services¶

7.7 API Routes¶

7.8 UI¶

7.9 Tests¶

Deliverable¶

Phase 8: Structural Biology Tools¶

New Dependencies¶

Tasks¶

8.1 Database Models¶

8.2 Sequence Alignment Utilities¶

8.3 Structural Alignment Utilities¶

8.4 Pydantic Schemas¶

8.5 Business Services¶

8.6 API Routes¶

8.7 UI¶

8.8 Tests¶

Deliverable¶

Phase 9: Binding Site Detection & Protein Preparation¶

New Dependencies¶

Tasks¶

9.1 Fpocket Integration¶

9.2 Protein Preparation¶

9.3 Binding Site Service¶

9.4 Protein Preparation Service¶

9.5 API Extensions¶

9.6 UI Extensions¶

9.7 Tests¶

Deliverable¶

Phase 10: Docking Engine¶

New Dependencies¶

Tasks¶

10.1 Database Models¶

10.2 Docking Utilities¶

10.3 Pydantic Schemas¶

10.4 Business Services¶

10.5 API Routes¶

10.6 UI¶

10.7 Tests¶

Deliverable¶

Phase 11: Screening Pipeline Engine¶

New Dependencies¶

Tasks¶

11.1 Plugin Protocol and Built-in Filters¶

11.2 Database Models¶

11.3 Pydantic Schemas¶

11.4 Pipeline Executor¶

11.5 Business Services¶

11.6 Plugin Seeding Script¶

11.7 API Routes¶

11.8 UI¶

11.9 Tests¶

Deliverable¶

Phase 12: Plugin Marketplace¶

New Dependencies¶

Tasks¶

12.1 Plugin Registry Service¶

12.2 Additional Protocol Classes¶

12.3 API Extensions¶

12.4 Marketplace UI¶

12.5 App Startup Integration¶

12.6 Entry Point Documentation¶

12.7 Tests¶

Deliverable¶

Phase Summary Table¶

Configuration Updates¶

chemlib/config.py Additions¶

requirements.txt Additions¶

Migration Strategy¶

`chemlib/config.py` Additions¶

`requirements.txt` Additions¶
