Layer Architecture

Click diagram to zoom and pan:

ChemLib follows a strict layered architecture with unidirectional dependencies:

┌─────────────────────────────────────────────────────────────────┐
│                        UI LAYER                                  │
│  HTML templates + JavaScript + 3Dmol.js                          │
│  Only communicates via HTTP to API layer                         │
└──────────────────────────┬──────────────────────────────────────┘
                           │ HTTP (REST JSON)
                           ▼
┌─────────────────────────────────────────────────────────────────┐
│                       API LAYER (FastAPI)                         │
│  Routes: parse requests, validate input (Pydantic), call         │
│  services, format responses. NO business logic here.             │
│                                                                  │
│  chemlib/api/                                                    │
│  ├── compounds.py    POST/GET/PUT/DELETE /api/compounds          │
│  ├── fragments.py    POST/GET /api/fragments                     │
│  ├── assembly.py     POST /api/assembly/*                        │
│  ├── visualization.py GET /api/viz/*                             │
│  └── scoring.py      GET/POST /api/scoring/*                     │
└──────────────────────────┬──────────────────────────────────────┘
                           │ Python function calls
                           ▼
┌─────────────────────────────────────────────────────────────────┐
│                     SERVICE LAYER                                │
│  Business logic. Orchestrates chemistry + DB operations.         │
│  Services are stateless — all state in DB.                       │
│                                                                  │
│  chemlib/services/                                               │
│  ├── compound_service.py   Import, validate, compute properties  │
│  ├── fragment_service.py   Decompose, manage fragment library    │
│  ├── assembly_service.py   Join fragments, build molecules       │
│  ├── conformer_service.py  Generate 3D, minimize energy          │
│  ├── scoring_service.py    Drug-likeness, SA, filters            │
│  └── viz_service.py        Prepare 3D viewer data                │
└──────────┬──────────────────────────────┬───────────────────────┘
           │                              │
           ▼                              ▼
┌─────────────────────┐    ┌─────────────────────────────────────┐
│   CHEMISTRY LAYER   │    │         DB SERVICE LAYER             │
│   Pure RDKit ops    │    │   SQLAlchemy CRUD operations         │
│   No DB access      │    │   Only layer that touches ORM        │
│                     │    │                                      │
│  chemlib/chemistry/ │    │  chemlib/db/service.py               │
│  ├── representations│    │  ├── CRUDBase (generic)              │
│  ├── descriptors    │    │  ├── CompoundDBService               │
│  ├── fingerprints   │    │  ├── FragmentDBService               │
│  ├── fragmentation  │    │  ├── AssemblyDBService               │
│  ├── assembly       │    │  └── ConformerDBService              │
│  ├── conformers     │    │                                      │
│  └── filters        │    │  chemlib/db/session.py               │
└─────────────────────┘    │  ├── engine + session factory        │
                           │  └── get_db() dependency             │
                           └──────────────┬──────────────────────┘
                                          │
                                          ▼
                           ┌─────────────────────────────────────┐
                           │          ORM MODELS                  │
                           │  chemlib/models/                     │
                           │  ├── base.py (Base, mixins)          │
                           │  ├── compound.py                     │
                           │  ├── structure.py                    │
                           │  ├── reaction.py                     │
                           │  └── assembly.py                     │
                           └──────────────┬──────────────────────┘
                                          │
                                          ▼
                           ┌─────────────────────────────────────┐
                           │          DATABASE                    │
                           │  PostgreSQL (prod) / SQLite (dev)    │
                           │  Schema managed by Alembic           │
                           └─────────────────────────────────────┘

---

Module Responsibilities

chemlib/chemistry/ — Pure Chemistry Utilities

These modules contain zero database access. They take RDKit Mol objects or SMILES strings as input and return computed results. This makes them independently testable.

representations.py

• smiles_to_mol(smiles: str) -> Mol — Parse SMILES, return Mol or raise
• mol_to_canonical_smiles(mol: Mol) -> str — Canonical SMILES
• mol_to_inchi(mol: Mol) -> str — InChI string
• mol_to_inchi_key(mol: Mol) -> str — 27-char InChIKey
• mol_to_mol_block_2d(mol: Mol) -> str — MOL block with computed 2D coords
• mol_to_mol_block_3d(mol: Mol) -> str — MOL block with 3D coords (single conformer)
• mol_block_to_mol(block: str) -> Mol — Parse MOL block
• sdf_to_mols(sdf_data: str) -> list[Mol] — Parse SDF
• mol_to_formula(mol: Mol) -> str — Molecular formula

descriptors.py

• compute_properties(mol: Mol) -> dict — All standard properties (MW, LogP, TPSA, HBD, HBA, rotatable bonds, rings, QED)
• compute_mw(mol: Mol) -> float
• compute_logp(mol: Mol) -> float
• Individual property functions for targeted computation

fingerprints.py

• compute_morgan_fp(mol: Mol, radius=2, nbits=2048) -> ExplicitBitVect
• serialize_fp(fp: ExplicitBitVect) -> bytes — For DB storage
• deserialize_fp(data: bytes) -> ExplicitBitVect — From DB
• tanimoto_similarity(fp1, fp2) -> float
• bulk_tanimoto(query_fp, fp_list) -> list[float]

fragmentation.py

• brics_decompose(mol: Mol) -> list[str] — BRICS fragment SMILES
• parse_attachment_points(frag_smiles: str) -> list[int] — Extract dummy atom labels
• get_compatible_labels(label: int) -> list[int] — BRICS compatibility rules

assembly.py

• join_fragments(frag1_smiles: str, frag2_smiles: str) -> list[str] — Join at compatible points, return product SMILES
• brics_build(fragments: list[str], max_results=100) -> list[str] — Combinatorial assembly
• validate_molecule(smiles: str) -> bool — Chemical sanity check
• clean_assembled_mol(mol: Mol) -> Mol — Remove leftover dummy atoms, sanitize

conformers.py

• generate_conformers(mol: Mol, num_confs=50, seed=42) -> Mol — ETKDGv3 embedding
• minimize_conformer(mol: Mol, conf_id: int, force_field='MMFF94') -> tuple[float, bool] — Returns (energy, converged)
• minimize_all_conformers(mol: Mol, force_field='MMFF94') -> list[tuple[int, float, bool]]
• get_lowest_energy_conformer(mol: Mol) -> int — Conformer ID
• conformer_to_mol_block(mol: Mol, conf_id: int) -> str — Extract single conformer as MOL block

filters.py

• check_lipinski(mol: Mol) -> dict — {passes: bool, violations: list, properties: dict}
• check_veber(mol: Mol) -> dict
• check_pains(mol: Mol) -> dict — {passes: bool, matched_filters: list}
• compute_qed(mol: Mol) -> float
• compute_sa_score(mol: Mol) -> float
• full_druglikeness_report(mol: Mol) -> dict — All filters combined

---

chemlib/services/ — Business Logic

Services orchestrate between chemistry operations and DB persistence.

compound_service.py

class CompoundService:
    async def import_from_smiles(self, db, smiles, name=None) -> CompoundResponse
        # 1. Parse SMILES (chemistry.representations)
        # 2. Check for duplicates (db_service.get_by_smiles)
        # 3. Compute properties (chemistry.descriptors)
        # 4. Compute fingerprint (chemistry.fingerprints)
        # 5. Generate 2D coords (chemistry.representations)
        # 6. Persist (db_service.create)

    async def import_from_sdf(self, db, sdf_data) -> list[CompoundResponse]
        # Process each molecule in SDF

    async def search_similar(self, db, smiles, threshold=0.7) -> list[CompoundResponse]
        # 1. Parse query SMILES, compute FP
        # 2. Get all FPs from DB
        # 3. Compute Tanimoto similarities
        # 4. Return matches above threshold

fragment_service.py

class FragmentService:
    async def decompose_compound(self, db, compound_id) -> list[FragmentResponse]
        # 1. Get compound from DB
        # 2. BRICS decompose (chemistry.fragmentation)
        # 3. For each fragment: compute properties, store

    async def get_compatible(self, db, fragment_id) -> list[FragmentResponse]
        # 1. Get fragment, read attachment points
        # 2. Compute compatible labels
        # 3. Query DB for fragments with matching labels

assembly_service.py

class AssemblyService:
    async def start_assembly(self, db, fragment_id) -> AssemblyResponse
        # 1. Create AssembledMolecule from initial fragment
        # 2. Record first AssemblyStep

    async def add_fragment(self, db, assembly_id, fragment_id, attachment_info) -> AssemblyResponse
        # 1. Get current molecule state
        # 2. Join fragment (chemistry.assembly)
        # 3. Validate result
        # 4. Update molecule, record AssemblyStep

    async def finalize(self, db, assembly_id) -> AssemblyResponse
        # 1. Compute all properties on final molecule
        # 2. Run all scoring
        # 3. Generate conformers
        # 4. Update DB record

conformer_service.py

class ConformerService:
    async def generate_and_minimize(self, db, parent_type, parent_id, num_confs=50) -> list[ConformerResponse]
        # 1. Get molecule SMILES from DB
        # 2. Generate conformers (chemistry.conformers)
        # 3. Minimize all (chemistry.conformers)
        # 4. Store each conformer in DB
        # 5. Mark lowest energy

    async def get_viewer_data(self, db, parent_type, parent_id, conf_id=None) -> str
        # Return MOL block for 3Dmol.js rendering

---

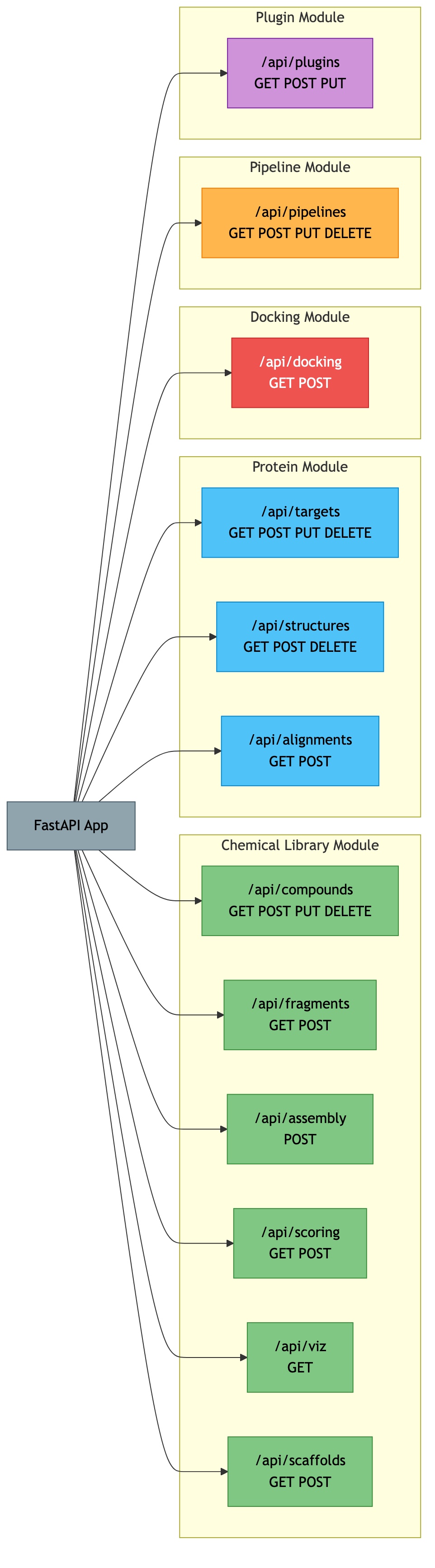

Click diagram to zoom and pan:

chemlib/api/ — FastAPI Routes

Routes are thin wrappers. They: 1. Parse and validate request data (Pydantic schemas, auto) 2. Get DB session (dependency injection) 3. Call the appropriate service method 4. Return the response

# Example: chemlib/api/compounds.py
router = APIRouter(prefix="/api/compounds", tags=["compounds"])

@router.post("/", response_model=CompoundResponse, status_code=201)
async def create_compound(
    data: CompoundCreate,
    db: AsyncSession = Depends(get_db),
    service: CompoundService = Depends(),
):
    return await service.import_from_smiles(db, data.smiles, data.name)

@router.get("/{compound_id}", response_model=CompoundResponse)
async def get_compound(
    compound_id: int,
    db: AsyncSession = Depends(get_db),
    service: CompoundService = Depends(),
):
    compound = await service.get(db, compound_id)
    if not compound:
        raise HTTPException(404, "Compound not found")
    return compound

---

chemlib/schemas/ — Pydantic Models

Separate from ORM models. Used for request validation and response serialization.

# chemlib/schemas/compound.py
class CompoundCreate(BaseModel):
    smiles: str
    name: str | None = None

class CompoundResponse(BaseModel):
    id: int
    name: str | None
    canonical_smiles: str
    inchi_key: str | None
    formula: str | None
    mw: float | None
    logp: float | None
    tpsa: float | None
    hbd: int | None
    hba: int | None
    qed_score: float | None
    sa_score: float | None
    lipinski_pass: bool | None
    created_at: datetime

    model_config = ConfigDict(from_attributes=True)

class CompoundFilter(BaseModel):
    mw_min: float | None = None
    mw_max: float | None = None
    logp_min: float | None = None
    logp_max: float | None = None
    lipinski_pass: bool | None = None
    limit: int = 100
    offset: int = 0

---

Configuration

# chemlib/config.py
from pydantic_settings import BaseSettings

class Settings(BaseSettings):
    DATABASE_URL: str = "sqlite+aiosqlite:///./chemlib.db"
    # For PostgreSQL: "postgresql+asyncpg://user:pass@localhost/chemlib"

    CONFORMER_COUNT: int = 50
    CONFORMER_FORCE_FIELD: str = "MMFF94"
    MORGAN_FP_RADIUS: int = 2
    MORGAN_FP_BITS: int = 2048
    SIMILARITY_THRESHOLD: float = 0.7

    class Config:
        env_file = ".env"

settings = Settings()

---

Error Handling

Custom exception classes mapped to HTTP status codes:

class ChemLibError(Exception): ...
class InvalidSMILESError(ChemLibError): ...     # → 422
class CompoundNotFoundError(ChemLibError): ...   # → 404
class DuplicateCompoundError(ChemLibError): ...  # → 409
class AssemblyError(ChemLibError): ...           # → 400
class ConformerError(ChemLibError): ...          # → 500

FastAPI exception handlers translate these to proper HTTP responses with error details.

---

Testing Strategy

Layer	Approach	Dependencies
Chemistry	Unit tests with known molecules	RDKit only
DB Service	Integration tests	In-memory SQLite
Services	Integration tests	SQLite + RDKit
API	E2E tests with httpx.AsyncClient	Full stack, SQLite

Use pytest-asyncio for all async tests. Test DB uses a fresh in-memory SQLite per test session.
